Shorty Lift Master Booms - Telescoping - 8000 Lb Cap.
Status: Available
Lead Time to Ship for Qty of 1 = 28 Business Days
Priced Per: EACH
SKU:
LMS-EBT-46-8
$2,157.92
Description Telescoping
Overall Height 12"
Overall Length 52 1/2" to 93"
Uniform Capacity 8,000
Net Wt. (lbs) 432

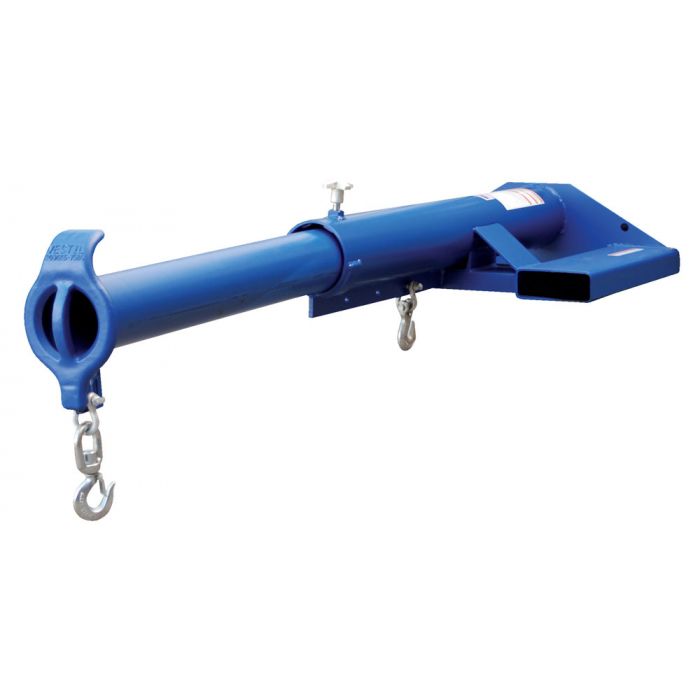

The Shorty Lift Master Boom is ideal for tight areas. Choose either telescoping or non-telescoping design. Includes built-in fork pockets and safety restraint. Steel construction with powder-coat blue finish.
Description Telescoping
Overall Height 12"
Overall Length 52 1/2" to 93"
Uniform Capacity 8,000
Net Wt. (lbs) 432
Weight | 432.0 |
---|---|
Width (in.) | 32 |
Length (in.) | 53.875 |
Height (in.) | 15 |
Uniform Capacity (lb.) | 8,000 |
Fork Pocket Center (in.) | 24 |
Fork Pocket Width (in.) | 7-1/4 x 2-1/4 |
Restraint Length (in.) | 36 |
Boom Style | Telescoping |
Minimum/Maximum Hook Point (in.) | 31 / 89 |
Single-Hook Capacity at 31" (lb.) | 8000 |
Single-Hook Capacity at 37" (lb.) | 7600 |
Single-Hook Capacity at 43" (lb.) | 7200 |
Single-Hook Capacity at 52" (lb.) | 6610 |
Single-Hook Capacity at 64" (lb.) | 5825 |
Single-Hook Capacity at 76-1/2" (lbs.) | 5010 |
Single-Hook Capacity at 89" (lbs.) | 4200 |
Extended Length (in.) | 90-7/8 |
OSHA | 1910.178(a)(4) |
