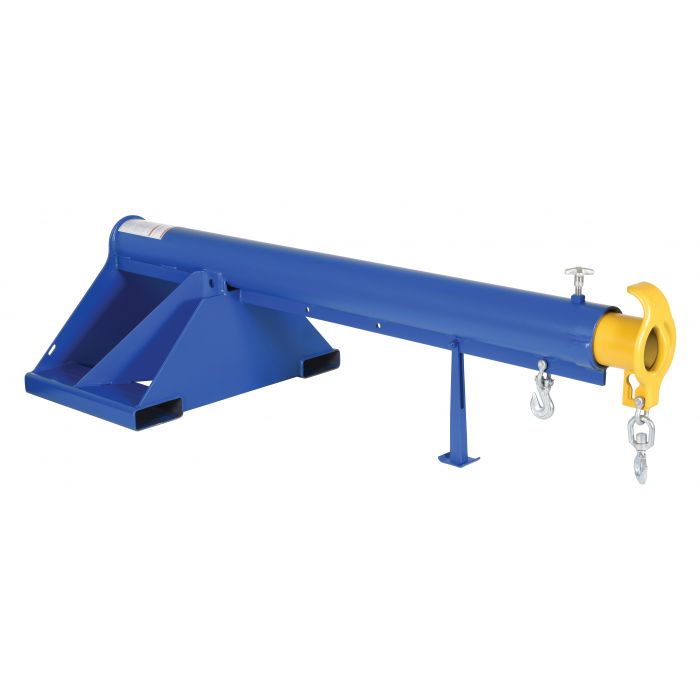

Lift Master Booms - Telescoping Lift Master One - 4000 Lb Cap.

Status: Available
Lead Time to Ship for Qty of 1 = 5 Business Days
Priced Per: EACH
SKU: LM-1T-4-24
$1,538.93

Unique performance, convenience and safety features are built into every Lift Master Boom. Fabricated from structural steel with welding to meet AWS creates a rugged and durable boom that will provide long term service. Telescopic units extend to 144" and come with an infinitely adjustable locking screw. Fork pockets for 4,000 pound capacity models measure. A 36" safety restraint secures the boom to the fork truck for safe operation.
Each unit includes two lifting hooks.

  • CAPACITY: 4,000 LBS
  • LOST LOAD: 435 LBS
  • OVERALL HEIGHT: 25 7/8"
  • LENGTH (RETRACTED): 86"
  • LENGTH (EXTENDED): 151 1/4"
  • OVERALL WIDTH: 32"
  • USABLE FORK POCKET: 2 1/2" X 7 1/2"
  • FORK POCKET CENTERS: 24"
  • MINIMUM HOOK POINT: 36"
  • MAXIMUM HOOK POINT: 144"
  • EFFECTIVE THICKNESS: LESS THAN 1"

NEVER EXCEED LOAD CENTER RATING PER FORK TRUCK MANUFACTURER'S GUIDELINES. DO NOT USE THIS FORK TRUCK ATTACHEMENT IF LOAD WILL EXCEED FORK TRUCK MANUFACTURER'S LOAD CENTER RATING.

Unique performance, convenience and safety features are built into every Lift Master Boom. Fabricated from structural steel with welding to meet AWS creates a rugged and durable boom that will provide long term service. Telescopic units extend to 144" and come with an infinitely adjustable locking screw. Fork pockets for 4,000 pound capacity models measure. A 36" safety restraint secures the boom to the fork truck for safe operation.
Each unit includes two lifting hooks.

  • CAPACITY: 4,000 LBS
  • LOST LOAD: 435 LBS
  • OVERALL HEIGHT: 25 7/8"
  • LENGTH (RETRACTED): 86"
  • LENGTH (EXTENDED): 151 1/4"
  • OVERALL WIDTH: 32"
  • USABLE FORK POCKET: 2 1/2" X 7 1/2"
  • FORK POCKET CENTERS: 24"
  • MINIMUM HOOK POINT: 36"
  • MAXIMUM HOOK POINT: 144"
  • EFFECTIVE THICKNESS: LESS THAN 1"

NEVER EXCEED LOAD CENTER RATING PER FORK TRUCK MANUFACTURER'S GUIDELINES. DO NOT USE THIS FORK TRUCK ATTACHEMENT IF LOAD WILL EXCEED FORK TRUCK MANUFACTURER'S LOAD CENTER RATING.

Additional Spec Usable fork pockets: 7 1/2"W x 2 1/2"H usable on 24" centers
Weight 425.0
Width (in.) 32
Length (in.) 86
Height (in.) 25.875
Uniform Capacity (lb.) 4,000
Fork Pocket Center (in.) 24
Fork Pocket Width/Height (in.) 7-1/2 x 2-1/2
Restraint Length (in.) 36
Boom Style Telescoping
Minimum/Maximum Hook Point (in.) 36/144
Single-Hook Capacity at 36" (lb.) 4000
Single-Hook Capacity at 48" (lb.) 3750
Single-Hook Capacity at 60" (lb.) 3500
Single-Hook Capacity at 72" (lb.) 3250
Single-Hook Capacity at 84" (lb.) 3000
Single-Hook Capacity at 96" (lb.) 2750
Single-Hook Capacity at 108" (lb.) 2500
Single-Hook Capacity at 120" (lb.) 2250
Single-Hook Capacity at 132" (lb.) 2000
Single-Hook Capacity at 144" (lb.) 1750
Overall Extended Length (in.) 151-1/4
Boom Type Lift Master Boom
OSHA 1910.178(a)(4)
